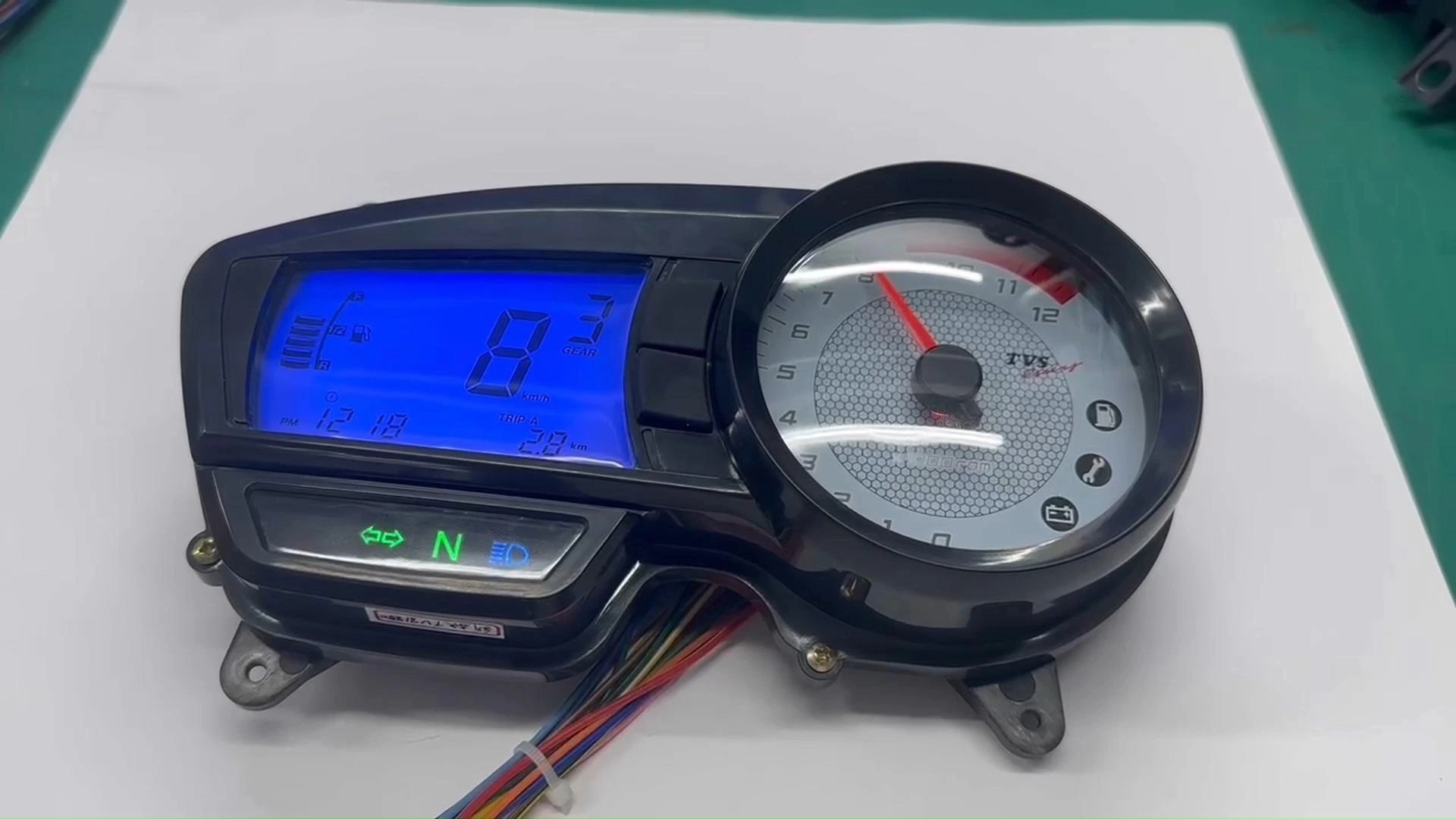

Digital Speedometer for TVS Apache RTR 160 TVS Apache RTR 180
Product Illustration
Button Adjustment
· Buttons: A short press of the upper button switches between ODO and TRIP A. A long press of the upper button resets the currently displayed trip mileage. In ODO mode, a long press of the upper button enters clock adjustment mode. A short press of the lower button switches between 12-hour and 24-hour clock formats, while a long press switches between metric and imperial speed units. Pressing both upper and lower buttons simultaneously resets the maintenance reminder.
· Clock Adjustment: A short press of the upper button moves the cursor to the next adjustment position, while a short press of the lower button increases the value at the selected position.
· Maintenance: When the vehicle has traveled more than 1000 km or exceeds 1000 km after a maintenance reset, the maintenance indicator light turns on.
Technical Parameters
· Speed: 23.4Hz corresponds to 20 km/h.
· RPM: 100Hz corresponds to 6000 r/min.
· Fuel Gauge: 10Ω-97Ω, with a warning point above 80Ω, suitable for 8Ω-97Ω
