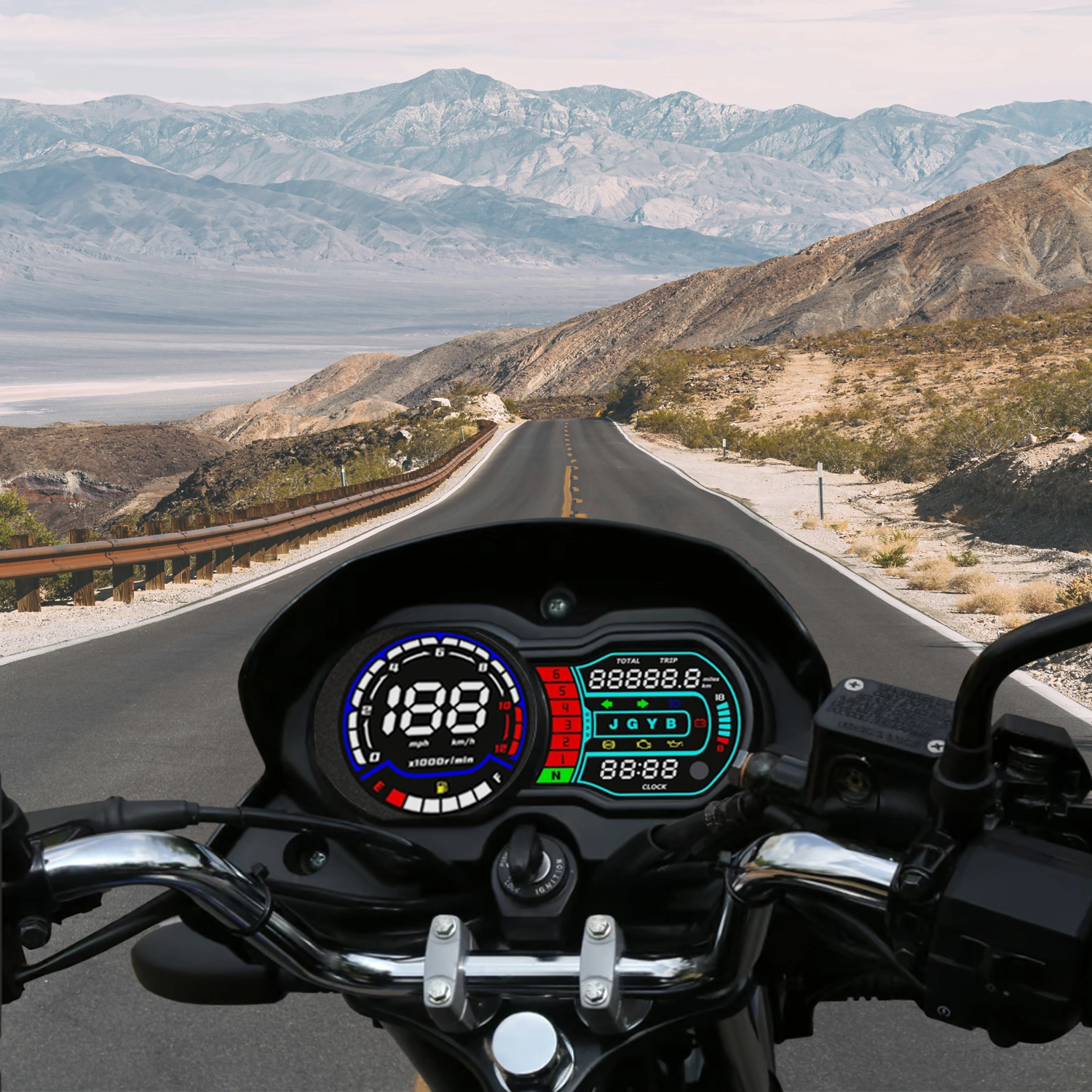

Motorcycle Instrument Panel for Bajaj platina 110 100 E/S 125
Product Illustration
Button Adjustment
· Speed: Maximum display speed is 199 km/h.
· Odometer:
- Total (TOTAL): Maximum display is 999,999 km; resets after exceeding the limit.
- Trip (TRIP): Maximum display is 999.9 km; can be reset.
· RPM: Maximum display is 12,000 r/min, with an accuracy of 500 r/min, displayed using a bar graph.
· Fuel Level: 6-segment fuel level display. When fuel is low (88±3Ω), the first segment at the bottom flashes. If the fuel sensor is not connected, the fuel gauge does not display.
· Voltage: 9-segment voltage display. When the battery (BAT) voltage drops below 11±0.3V, segments 1–3 of the voltage gauge flash. If the battery is not connected, the voltage gauge does not display.
· Indicator Lights:
- Left/Right turn signals and position light are green.
- High beam is blue.
- EFI and ABS are orange.
- Neutral (N) is green.
- Gear positions 1–6 are red.
· Backlight Brightness: Not adjustable.
Technical Parameters
· Speed: 4-pole, tire diameter 613 mm, 11.7 Hz = 20 km/h.
· RPM: 100 Hz corresponds to 6000 r/min.
· Fuel: 8Ω to 98Ω, warning at 88±3Ω.
